Why a tree shear?

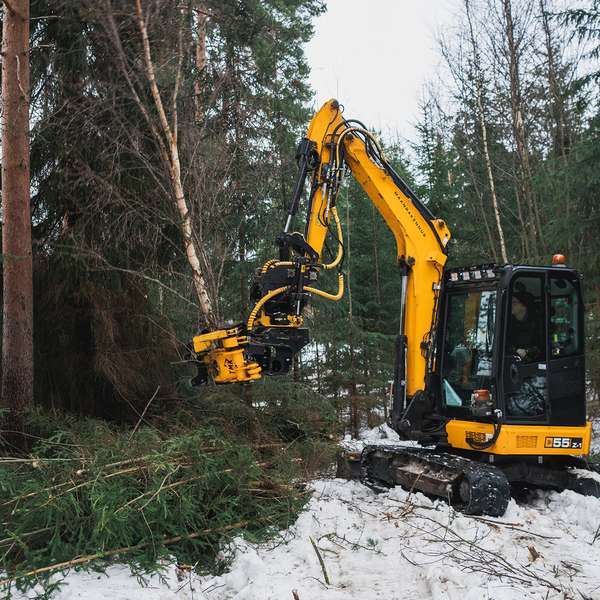

A Tree Shear is a hydraulic attachment meant for cutting trees like a guillotine. They are mainly used for tree removal where the other alternative methods include manual work with a chainsaw or a brush cutter, or machines equipped with a grapple saw or mulcher.
Compared to manual work, a tree shear can be a lot safer, faster and often a more cost-efficient alternative. Compared to a grapple saw, a tree shear is much more affordable to acquire and simple to use, as well as much easier to maintain. If working directly with a mulcher, the scrap material can't be re-used commercially and the mulched material itself can increase forest fire risks in drier conditions.
)
One grapple design

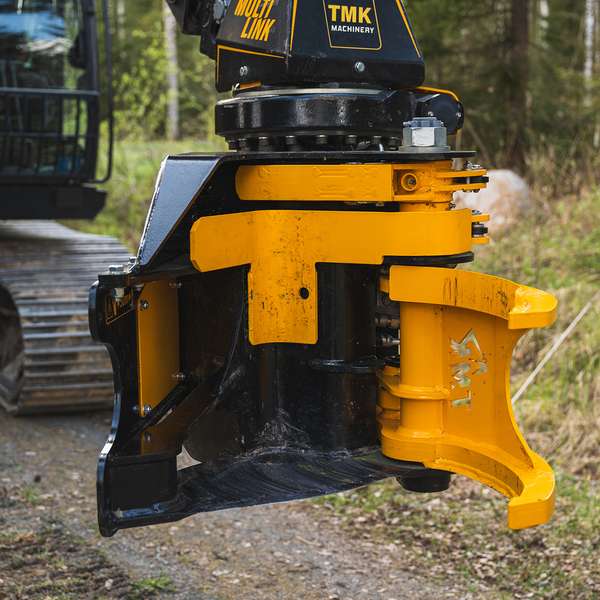

TMK Tree Shears were the first guillotines in the market to utilize only one moving grapple arm. This provides superior strength for the frame and better alignment for the blade. It also allows us to make our shears lighter and easier to maintain than the two grapple equivalents.
)
)
)
TMK 150
Cuts up to 150 mm
Fits to 1-3 tonne mini excavators
Weight starting from 85 kg
)

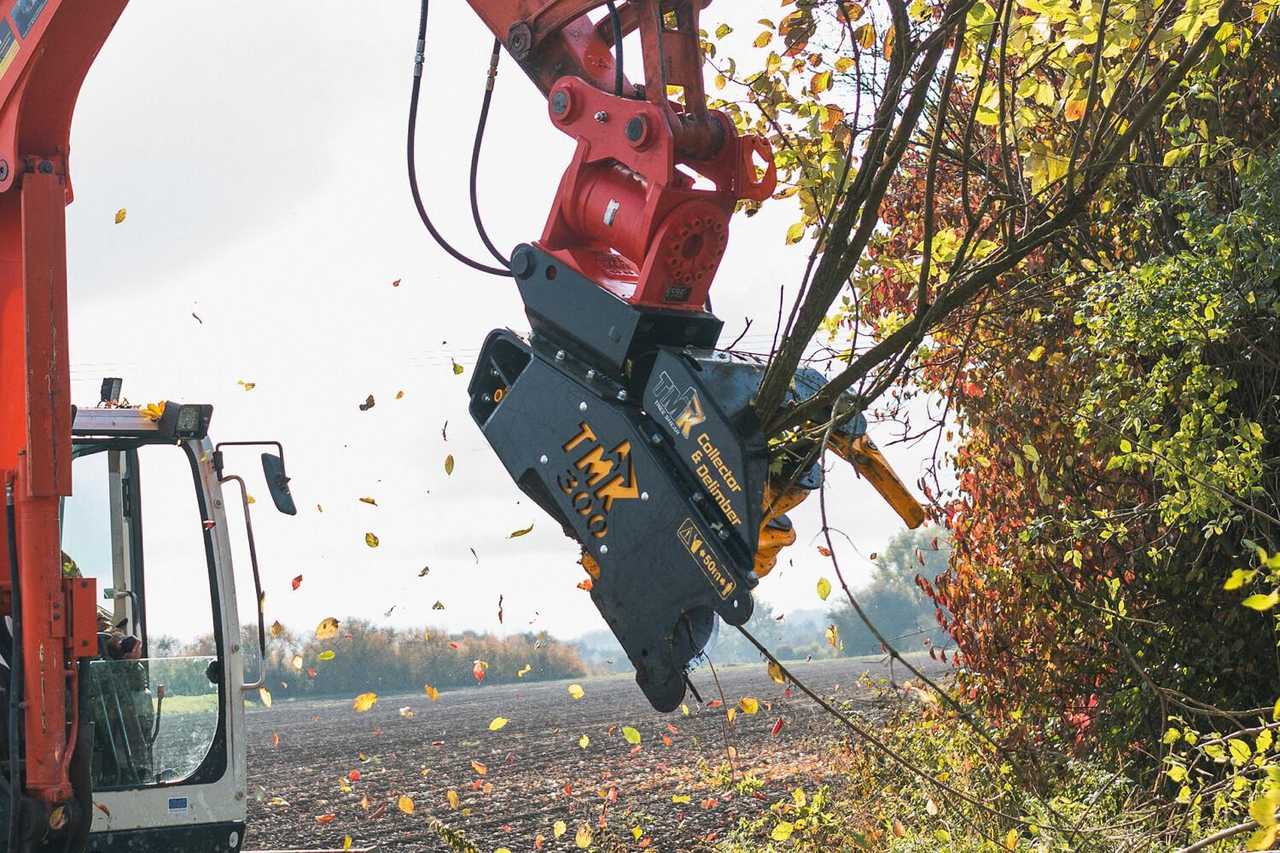

TMK 200 Next Gen
Cuts up to 200 mm
Fits to 2,5-8 ton excavators
Available with most Tree Shear attachments
Weight starting from 185 kg
)
What makes TMK Tree Shears unique?
Beauty in simplicity - Our CEO always said that a simple man couldn't make a complicated product, and that is how the TMK Tree Shear was born.

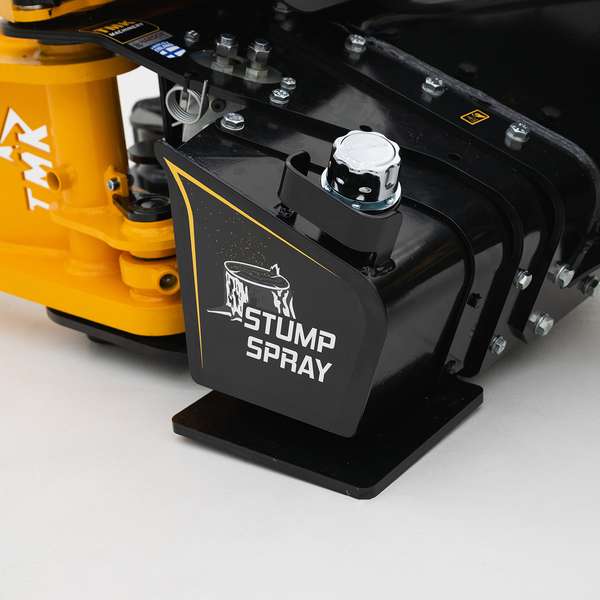

The TMK Tree Shears are unique in their simple yet effective and robust design, while boasting the largest amount of available add-ons on the market worldwide.
After choosing the correct product for yourself, the shear itself is operated with just one double-acting hydraulic line and a possible electric control line. Still, the shear is diverse, professional, efficient and strong.
:quality(75))
Tree Shear comparison
) | ) | ) | ) | ) | |
|---|---|---|---|---|---|
| Name | TMK 150 | TMK 200 Next Gen | TMK 250 | TMK 300 Next Gen | TMK 400 Next Gen |
| Max. cutting soft woods | 150 mm | 200 mm | 250 mm | 300 mm | 400 mm |
| Max. cutting hard woods | 130 mm | 180 mm | 230 mm | 250 mm | 350 mm |
| Weight (without attachments) | 85 kg | 185 kg | 300 kg (including Hanging Tilt) | 310 kg | 650 kg |
| Base machine size excavators | 1-3 tonnes | 2,5-8 tonnes | 5-15 tonnes | 6-20 tonnes | 12-30 tonnes |
| Crane reach forestry machines & timber cranes | 4-9 m | 7,5-11 m | 8,5+ m | - | - |
| Base machine size loaders, skid steers & telehandlers | Small | Small to medium | Medium | Medium to large | Large |
| Material | Hardox® | Hardox® | Hardox® | Hardox® | Hardox® |
)
